SMV-1000XT Intelligent Micro Vickers Hardness Tester
The SMV-1000XT Digital Micro Vickers Hardness Tester is a precision hardness testing device that integrates advanced optical technology with computer processing. Equipped with a built-in CCD image automatic measurement system, it directly captures indentations and calculates hardness values automatically, featuring a 9.7-inch high-definition touchscreen for intuitive and easy operation. It adopts an automatic turret and automatic loading/unloading system to achieve high-precision, high-efficiency hardness testing, making it ideal for a wide range of materials including metals, non-metals, coatings, and thin sheets. Key specifications: Test force ranges from 10gf to 1000gf (0.098N to 9.80N), hardness measurement range is 1HV to 3000HV, and it comes with 10× and 40× objectives for a minimum measurement accuracy of 0.1μm.
Product Details
Feature:
The SMV-1000XT digital micro Vickers hardness tester adopts a combination of industrial computer and hardness tester, the touch screen operation is convenient and fast with clear and intuitive display. The built-in CCD image automatic measurement system can directly display dynamic indentation, lock the image and automatically measure the hardness. It has high measurement accuracy and stable performance, avoiding eye irritation and visual fatigue caused by light sources, and reducing measurement errors.
The main body adopts cast aluminum structure which minimizes the deformation.
It uses special material lifting screw, the hardness reaches 35~40HRC after heat treatment which is wear-resistant. And the worm gear and worm structure makes the lifting more stable.
It adopts dead weight loading system, and the test force loading, dwelling and unloading processes are automatically completed.
Integrated design of hardness tester and industrial computer, it has all functions of the computer with Windows operating system.
With two objectives for measurement, the turret realizes automatic recognition and switching between the objectives and the indenter.
Digital X-Y test table for more accurate positioning and measurement.
With built-in CCD image automatic measurement system and 9.7 inch HD touch screen, it clearly displays indentation and automatically measures the hardness.
It has hardness conversion function which can be used to convert between different hardness scales.
It can automatically record measurement data, generate hardness depth curve, and save as WORD or EXCEL reports.
It has USB, VGA, LAN ports, which can be connected to external networks and other devices, allowing users to have more optional functions.
Standard: ISO 6507，ASTM E384，JIS Z2244，GB/T 4340.2
Application:
Suitable for ferrous metal, non-ferrous metals, IC thin sections, coatings, ply-metals; glass, ceramics, agate, precious stones, thin plastic sections etc.; hardness testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers.
Software Function:
Basic function: include all functions of image processing and measurement system, such as image capture, calibration, image processing, geometric measurement, annotation, photo album management and fixed times print etc.
Automatic measurement: Automatically capture the indentation and measure the diameter and calculate the corresponding value of Vickers hardness.
Hardness conversion: The system can convert the measured Vickers hardness value HV to other hardness value such as HBW, HR etc.
Data statistics: The system can automatically calculate the average value, variance and other statistical value of the hardness.
Standard exceeding alarm: Automatic mark the abnormal value, when the hardness exceeds the specified value, it automatically alarms.
Test report: Automatically generate hardness depth curve, and save the report of WORD or EXCEL format.
Easy to use: One key operation for automatic measurement. If need manual measurement or modify the results, just drag the mouse.
Strong noise resistance: The advanced and reliable image recognition technology can handle the indentation recognition on the surface of the complex sample.
Automatic calibration: The system has provided a calibration function, convenient for the indentation size measurement and may calibrate at any time. With a calibration grid, the system can automatically implement full calibration for calibration grid intersection points to eliminate measurement error caused by lens distortion.
Detail Pictures:

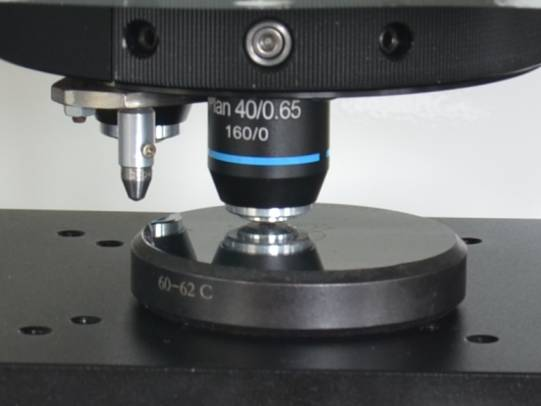

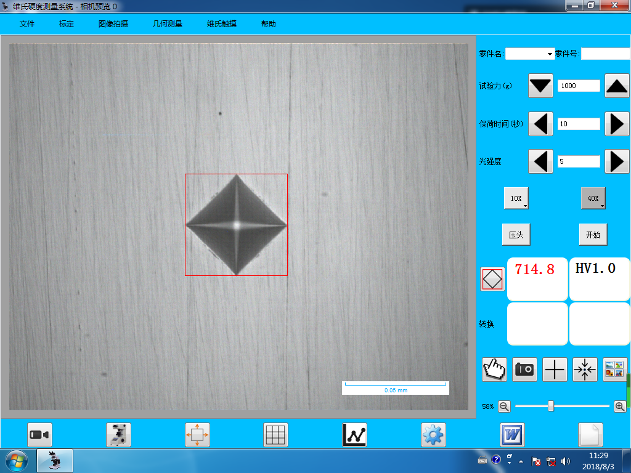

One indenter, Two objectives Operation interface

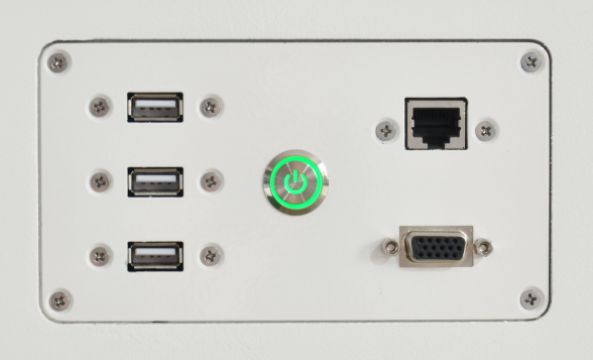

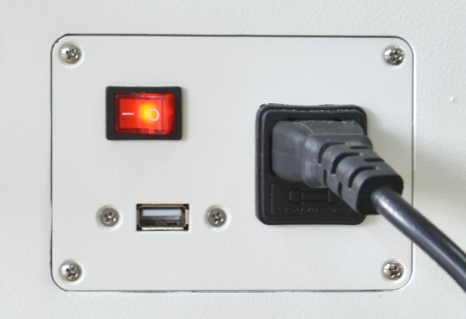

USB, VGA, LAN output interfaces USB output interface
Technical Specification:
|
Model |
SMV-1000XT |
|
|
Test Force |
gf |
10gf, 25gf, 50gf, 100gf, 200gf, 300gf, 500gf, 1000gf |
|
N |
0.098N, 0.246N, 0.49N, 0.98N, 1.96N, 2.94N, 4.90N, 9.80N |
|
|
test range |
1HV~3000HV |
|
|
hardness resolution |
0.1HV |
|
|
test mode |
HV/HK |
|
|
loading method |
automatic (loading/dwell/unloading) |
|
|
turret |
automatic shifting |
|
|
micro computer |
CPU: Intel I5，Memory: 4G，SSD: 240G |
|
|
CCD |
1.30 M. pixel |
|
|
conversion scale |
HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW |
|
|
hardness reading |
indentation display and automatic measuring on touch screen |
|
|
data output |
word or excel report with curve chart |
|
|
objective |
10×，40× |
|
|
effective field of view |
10×：680μm，40×：170μm |
|
|
min. measuring unit |
10×：0.1μm，40×：0.025μm |
|
|
dwell time |
0~60s |
|
|
light source |
halogen lamp |
|
|
digital x-y test table |
Size: 120×120mm; Travel: 25×25mm; Resolution: 0.001mm |
|
|
max. sample height |
170mm |
|
|
throat depth |
130mm |
|
|
power supply |
AC220V，50Hz |
|
|
dimension |
560×340×680mm，packing dimension: 650×380×960mm |
|
|
weight |
net weight: 48kg，gross weight: 62kg |
|
Standard accessories:
|
No. |
Name |
Qty |
No. |
Name |
Qty |
|
1 |
instrument main body |
1 |
11 |
10×digital measuring eyepiece |
1 |
|
2 |
diamond micro vickers indenter |
1 |
12 |
10×, 40× objective |
2 |
|
3 |
weights |
6 |
13 |
weight axis |
1 |
|
4 |
cross test table |
1 |
14 |
flat clamping test table |
1 |
|
5 |
thin specimen test table |
1 |
15 |
filament clamping test table |
1 |
|
6 |
horizontal regulating screw |
4 |
16 |
level |
1 |
|
7 |
fuse 1A |
2 |
17 |
halogen lamp 12V, 15~20W |
1 |
|
8 |
power cable |
1 |
18 |
screw driver |
2 |
|
9 |
hardness block 400~500 HV0.2 |
1 |
19 |
hardness block 700~800 HV1 |
1 |
|
10 |
anti-dust cover |
1 |
20 |
manual |
1 |
