SHR-560Z V3 Automatic Double Rockwell Hardness Tester
The SHR-560Z V3 Fully Automatic Double Rockwell Hardness Tester features an aesthetic appearance and comprehensive functionality, combining electric and electronic characteristics. It can perform hardness tests for all Rockwell and superficial Rockwell scales, with automatic turret rotation and automatic loading/unloading, and is equipped with an 8-inch color touch screen for easy operation. With a maximum test force of 60kgf (588.4N) and a maximum specimen height of 210mm, it also offers data statistics, RS232 data output, and supports conversion of multiple hardness scales, making it an efficient and reliable hardness testing device.
Product Details
Feature:
SHR-560ZV3 Fully Automatic double Rockwell hardness tester with a good aesthetic aspect, complete functions, easy operation, intuitive display and good reliability, is a high-tech product combining the mechanic and electric features. This instrument adopts the electric loading and unloading of test force instead of the weights, which can test all the Rockwell and superficial Rockwell hardness scales. It has fully automatic and manual operation function, XYZ automatic control, which is suitable for jiminy end-quench test. With external PC computer, it has statistical function which can calculate the extreme value, average value, standard deviation, etc. and also can establish the corresponding statistics database. Statistics database allows inputting the detection data from other devices which can be used together for statistical analysis. The test report can be customized according to the user’s requirements, in the report you can select the test parameters, test results and the curve chart. The test results and test report can carry out network transmission and allows other computers to use the data to realize the network management.
Support for all the Rockwell and superficial Rockwell scales;
Touch screen display and operation, dynamically display the working state of the lifting screw and the indenter;
Press operation for the test table, fast rising or dropping;
One key to complete the rising of the specimen, loading dwell and unloading of the indenter, displaying of the hardness value, homing of the test table;
With data storage function, automatic calculation of the maximum, minimum, average of the hardness value, the test results can be printed for output, and with a RS232 interface users can connect it to the computer for output.
Application:
Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc. Also suitable for surface quenched steel, surface heat treating and chemical treating materials, sheet, zinc layers, chrome layers, tin layers etc.
Standard: ISO 6508，ASTM E-18，JIS Z2245，GB/T 230.2
Detail Pictures:

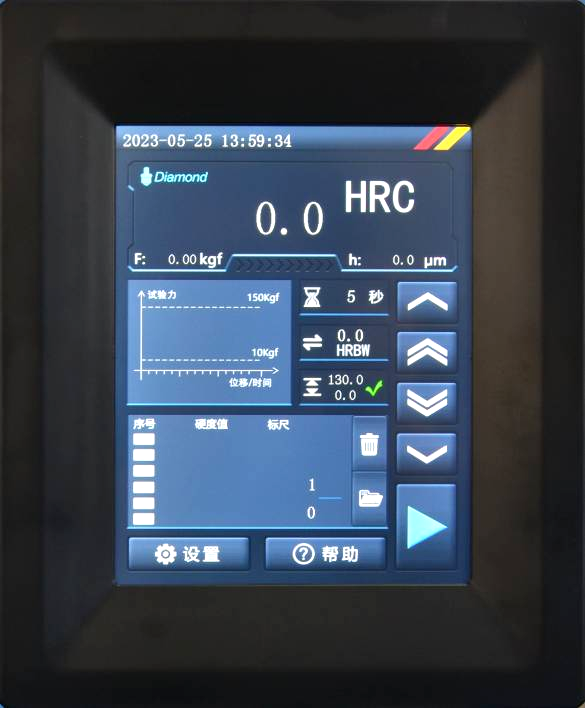

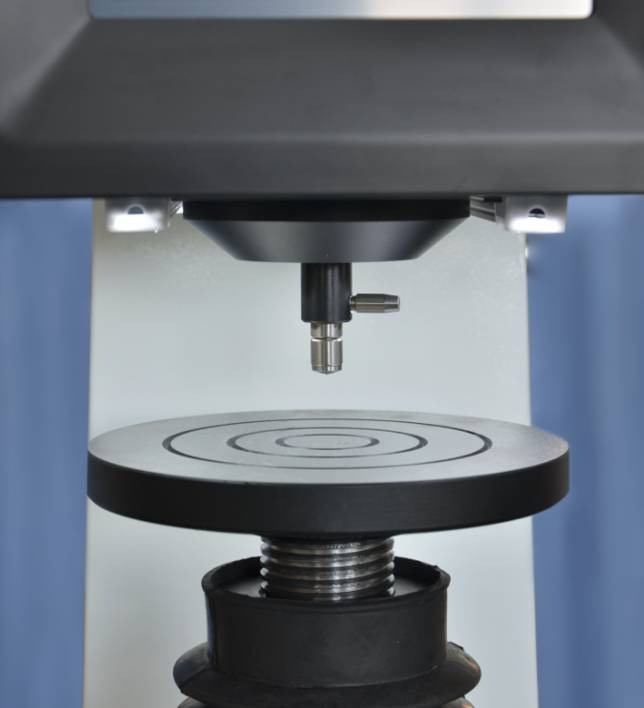

Operation interface Indenter and test table

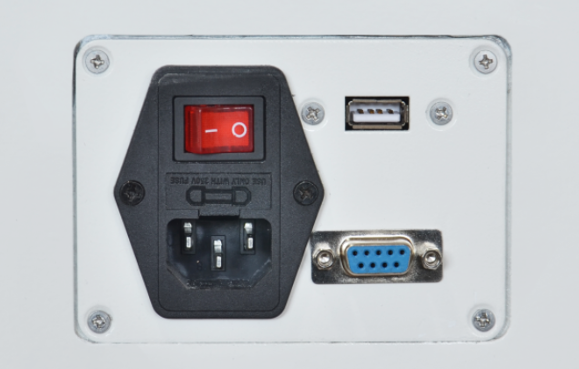

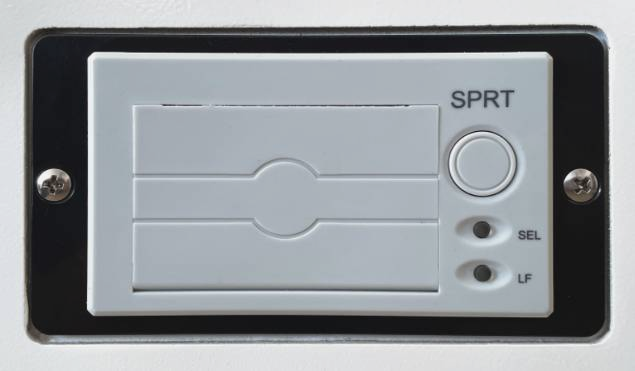

Built-in thermal printer USB and RS232 ports

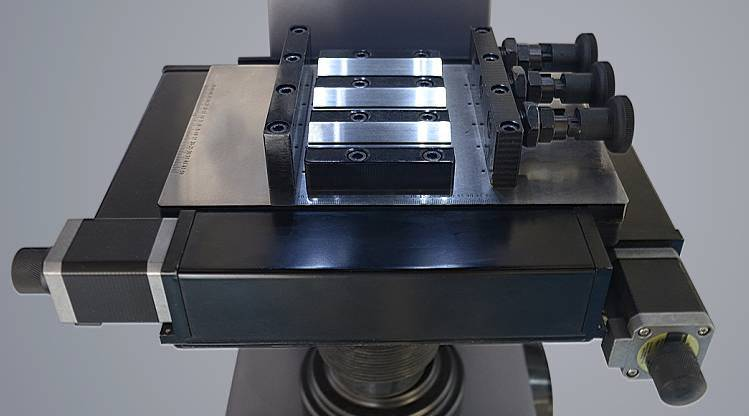

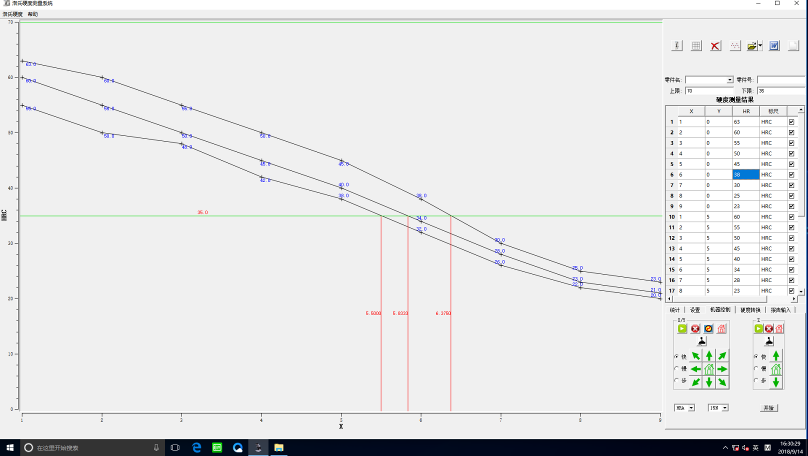

Automatic test table Software interface
Technical Specification：
|
Model |
SHR-560Z V3 |
|
initial test force |
3kgf (29.42N), 10kgf (98.07N) |
|
total test force |
15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N), 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N) |
|
indenter |
diamond rockwell indenter, ф1.588mmball indenter |
|
loading method |
automatic (loading/dwell/unloading) |
|
automatic test table |
automatic rising and homing, one key to complete |
|
X-Y Test Table |
Size: 250×160mm, Travel: 100×100mm, Dimension:365×300×140mm The test table has multi-point settings, one key operation to achieve multi-point automatic test function. And it can add other functions according to customers’ requirement! |
|
hardness reading |
8 inch touch screen, menu selection, hardness display, parameter setting, data statistics, storage, etc. |
|
data statistics |
can store 10 folders with 1000 data in each group, automatic calculating maximum, minimum, average, total, standard deviation, and repeatability, and can also selectively count and output. |
|
test scale |
HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV (HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y) |
|
conversion scale |
HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HBW |
|
data output |
RS232 interface |
|
resolution |
0.1HR |
|
dwell time |
0~99s |
|
max. height of specimen |
210mm |
|
throat |
150mm |
|
power supply |
AC220V，50Hz |
|
dimension(LWH) |
machine: 540×340×890mm，packing: 820×460×1170mm |
|
weight |
net weight: 100kg，gross weight: 120kg |
Standard accessories:
|
No |
Name |
Qty |
No |
Name |
Qty |
|
1 |
instrument main body |
1 |
13 |
accessory kit |
1 |
|
2 |
diamond rockwell indenter |
1 |
14 |
spanner 7mm |
1 |
|
3 |
φ1.5875mm ball indenter |
1 |
15 |
inner hexagon spanner 3mm |
1 |
|
4 |
φ150mm flat anvil |
1 |
16 |
three-station end quenching fixture |
1 |
|
5 |
φ74mm flat anvil |
1 |
17 |
fuse 2A |
1 |
|
6 |
φ40mm V-shaped anvil |
1 |
18 |
anti-dust cover |
1 |
|
7 |
hardness block 20~30 HRC |
1 |
19 |
measuring software |
2 |
|
8 |
hardness block 70~85 HR30TW |
1 |
20 |
control cables |
1 |
|
9 |
hardness block 60~70 HRC |
1 |
21 |
power cable |
1 |
|
10 |
hardness block 80~100 HRBW |
1 |
22 |
computer |
1 |
|
11 |
hardness block 65~80 HR30N |
1 |
23 |
USB Key |
1 |
|
12 |
manual |
1 |
|
|
