SHR-560Z Automatic Double Rockwell Hardness Tester
The SHR-560Z Automatic Rockwell Hardness Tester boasts an aesthetic design and easy operation, featuring an 8-inch high-definition touch screen, a 1:1 high-precision gravity sensing system and zero-backlash ball screw force control for accurate, error-free loading. It supports one-click test completion, automatic data statistics, and multi-format output, making it suitable for hardness testing of various metallic materials such as quenched steel and annealed steel. Its key specifications include a total test force range of 3kgf to 150kgf, a resolution of 0.1HR, and a comprehensive range of hardness testing scales covering Rockwell and superficial Rockwell types like HRA, HRB, and HRC.
Product Details
Feature:
SHR-560Z Automatic double Rockwell hardness tester with a good aesthetic aspect, complete functions, easy operation, intuitive display and good reliability, is a high-tech product combining the mechanic and electric features, which is suitable for the Rockwell and superficial Rockwell hardness test.
The main body adopts cast aluminum structure which minimizes the deformation.
The structure realizes a 1:1 high-precision gravity sensing system combined with zero gap ball screw force control, to ensure precise and error free loading every time.
After heat treatment, the hardness of the lifting screw reaches 35~40HRC, which is beneficial for the stability of the testing data at different heights during lifting.
With LED light sources around the indenter to clearly observe the testing process.
8 inch HD touch screen display and operation, equipped with dynamic curve graphs, real-time monitoring of the operation status of force sensors and displacement sensors, and synchronous display of test depth.
It supports the selection of all Rockwell and superficial Rockwell hardness scales, supports the conversion of various hardness scales, and has the function of arc correction compensation.
The test table can quickly rise or descend with jog operation.
One click completion of sample lifting, loading, dwelling, and unloading, displaying the hardness value, and returning the test table to its initial position.
Equipped with data storage, automatic calculation of maximum, minimum, average, standard deviation, repeatability, etc. Test results can be selectively deleted, support printing output, USB port for outputting Excel files, and RS232 port for connecting to a computer for output.
Application:
Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc. Also suitable for surface quenched steel, surface heat treating and chemical treating materials, sheet, zinc layers, chrome layers, tin layers etc.
Standard: ISO 6508，ASTM E-18，JIS Z2245，GB/T 230.2
Detail Pictures:

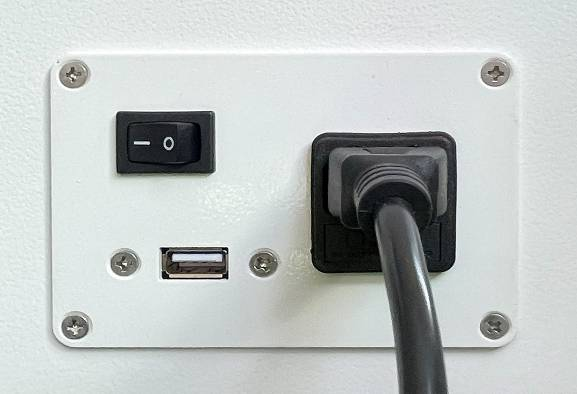

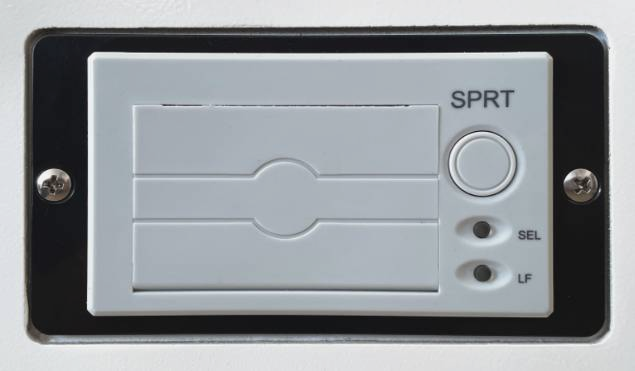

Built-in thermal printer USB and RS232 ports

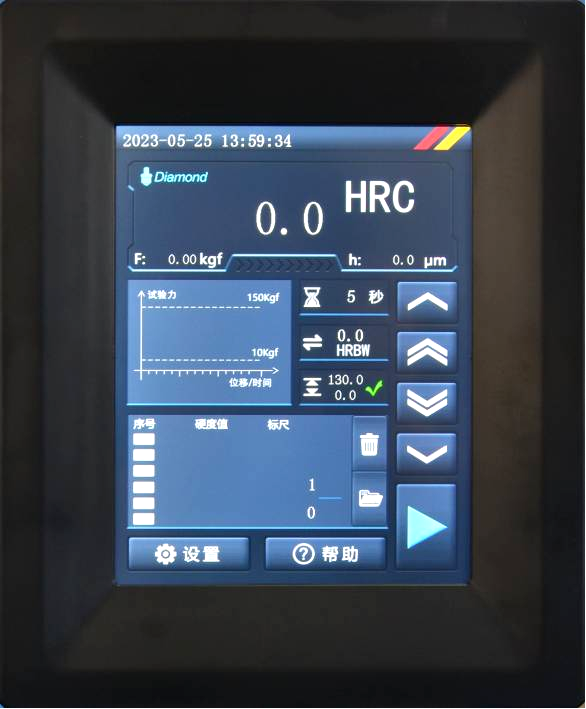

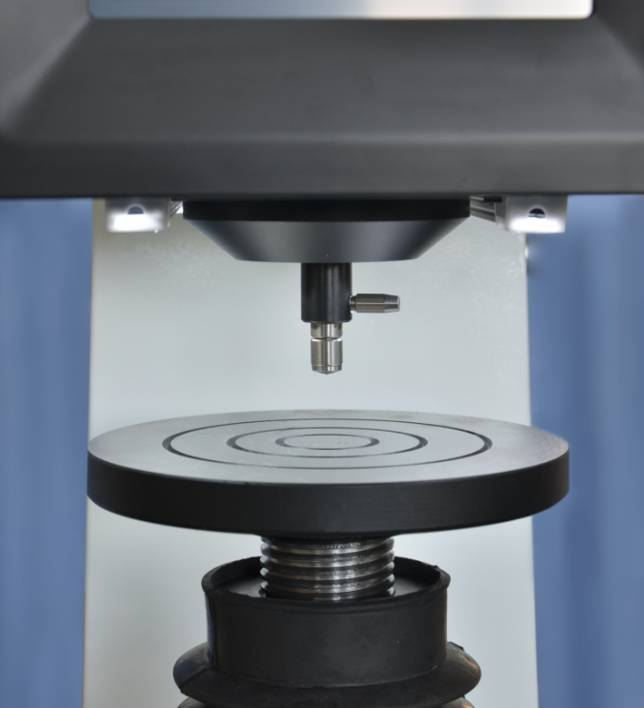

Operation interface Indenter and test table
Technical Specification：
|
Model |
SHR-560Z |
|
initial test force |
3kgf (29.42N), 10kgf (98.07N) |
|
total test force |
15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N), 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N) |
|
indenter |
diamond rockwell indenter, ф1.588mmball indenter |
|
loading method |
automatic (loading/dwell/unloading) |
|
automatic test table |
automatic rising and homing, one key to complete |
|
hardness reading |
touch screen |
|
test scale |
HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV (HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y) |
|
conversion scale |
HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HBW |
|
data output |
RS232 interface |
|
resolution |
0.1HR |
|
dwell time |
0~99s |
|
max. height of specimen |
310mm |
|
throat |
150mm |
|
power supply |
AC220V，50Hz |
|
dimension(LWH) |
machine: 535×330×890mm，packing: 820×460×1170mm |
|
weight |
net weight: 80kg，gross weight: 100kg |
Standard accessories:
|
No. |
Name |
Qty |
No. |
Name |
Qty |
|
1 |
instrument main body |
1 |
11 |
ф150 large plane test table |
1 |
|
2 |
ф1.588mmball indenter |
1 |
12 |
Ф 75 middle plane test table |
1 |
|
3 |
diamond rockwell indenter |
1 |
13 |
Ф40 V-shaped test table |
1 |
|
4 |
hardness block 60~70 HRC |
1 |
14 |
horizontal regulating screw |
4 |
|
5 |
hardness block 80~100 HRB |
1 |
15 |
screw driver |
1 |
|
6 |
hardness block 20~30 HRC |
1 |
16 |
spanner |
1 |
|
7 |
hardness block 65~80 HR30N |
1 |
17 |
power cable |
1 |
|
8 |
hardness block75~85 HR30T |
1 |
18 |
fuse 2A |
2 |
|
9 |
level |
1 |
19 |
manual |
5 |
|
10 |
anti-dust cover |
1 |
|
|
1 |
