SHR-1500DX Digital Plastics Rockwell Hardness Tester
he SHR-1500DX Digital Plastic Rockwell Hardness Tester is equipped with a 5.6-inch HD touch screen, which can intuitively display a variety of hardness scales and supports the conversion of multiple hardness systems such as Rockwell and Brinell. Its total test force ranges from 10kgf to 150kgf, with functions like automatic calculation of maximum, minimum, and average values, and supports USB and RS232 data output. It is suitable for hardness testing of various soft materials such as hard plastics, rubber, and aluminum, and complies with international standards including ISO 6508 and ASTM E-18.
Product Details
Feature:
SHR-1500DX Digital plastics Rockwell hardness tester is equipped with a newly-designed large displaying screen with good reliability, excellent operation and easy watching, thus it is a high-tech product combining the mechanic and electric features. It can show and set the present scale, test force, test indenter, dwell time and hardness conversion; the main function is as follows: Selection of all the plastics Rockwell scales; Conversion scales of different kinds of hardness; Test results can be saved and printed out, automatic calculation of maximum, minimum and average value; With RS232 interface for connecting to the computer.
The main body adopts cast iron structure which minimizes the deformation. The shell has undergone natural aging treatment for more than half a year, and its physical properties are stable.
After heat treatment, the hardness of the lifting screw reaches 35~40HRC, which has stable structure and wear resistance.
The weights and lever are manufactured and calibrated by classic techniques, with high accuracy and can be fine tuned through mechanical structures.
5.6 inch HD touch screen display and operation, dynamic image display of operation process and beeping prompts.
It supports for Rockwell hardness scales, after selecting the scale it prompts the selection of corresponding indenter and test force, and the test force is switched by rotating the knob.
It supports the conversion of various hardness scales in real time.
It supports upper and lower limit settings and has the function of arc correction compensation.
Real time saving of hardness test results, automatic calculation of maximum, minimum, mean, standard deviation, repeatability, etc., with multiple folder selection, optional deletion and printing output.
Built in thermal printer with fast printing speed, and equipped with USB interface for users to output the data.
Application:
Suitable for hard plastics, hard rubbers, aluminum, tin, copper, soft steel, synthetic resins and fricative materials etc.
Standard: ISO 6508，ASTM E-18，JIS Z2245，GB/T 230.
Detail pictures:

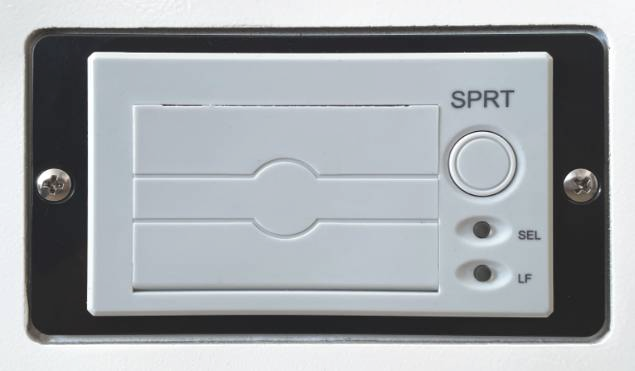

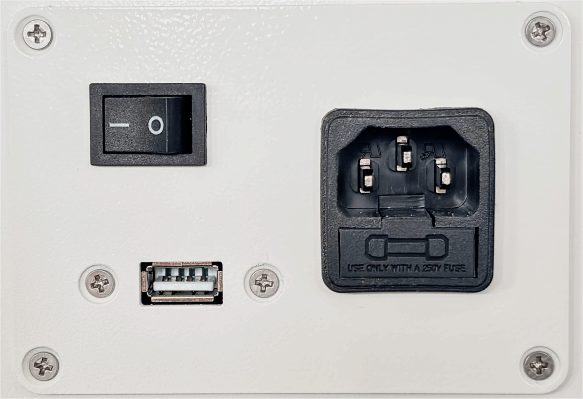

Built-in thermal printer USB port

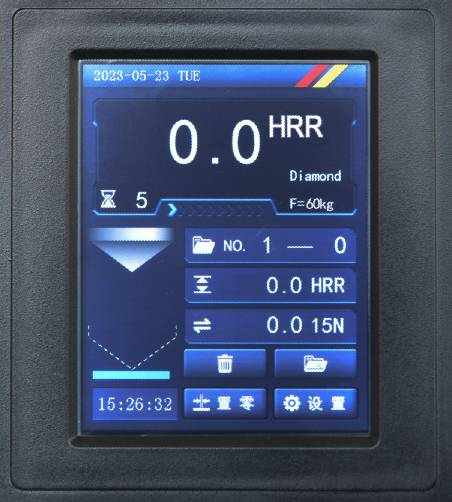

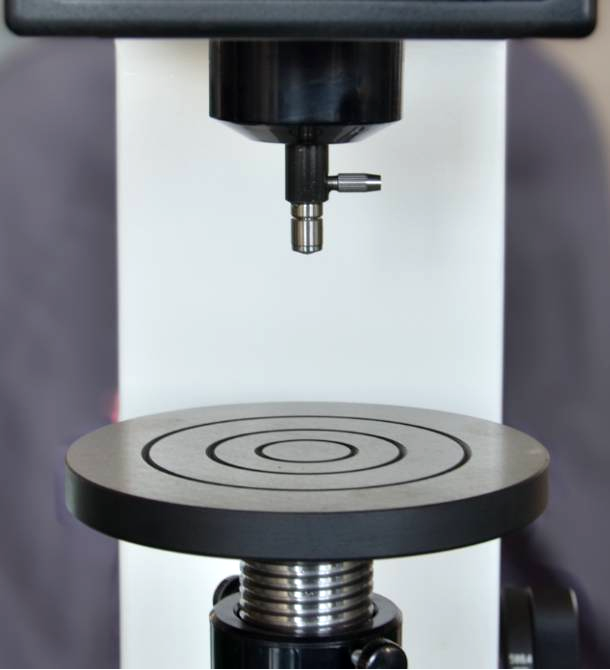

Operation interface Indenter and test table
Technical Specification：
|
Model |
SHR-1500DX |
|
initial test force |
10kgf (98.07N) |
|
total test force |
60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N) |
|
indenter |
Ф3.175mmBall Indenter, Ф6.35mmBall Indenter, Ф12.7mmBall Indenter |
|
loading method |
automatic (loading/dwell/unloading) |
|
hardness reading |
5.6 inch touch screen display, 6 folders, each 1000 sets data |
|
test scale |
HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV |
|
conversion scale |
HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW |
|
hardness reading |
Built-in Printer，RS232 Interface |
|
resolution |
0.1HR |
|
dwell time |
0~60s |
|
max. height of specimen |
185mm |
|
throat |
165mm |
|
power supply |
AC220V，50Hz |
|
dimension(LWH) |
machine:520×215×700mm，packing: 650×370×950mm |
|
weight |
net weight: 78kg，gross weight: 100kg |
Standard accessories:
|
No. |
Name |
Qty |
No. |
Name |
Qty |
|
1 |
instrument main body |
1 |
11 |
hardness block 110~120 HRL |
1 |
|
2 |
Ф3.175mmBall Indenter |
|
12 |
hardness block 85~95 HRE |
1 |
|
3 |
Ф6.35mmBall Indenter |
1 |
13 |
hardness block 115~125 HRR |
1 |
|
4 |
Ф12.7mmBall Indenter |
1 |
14 |
hardness block 90~100 HRM |
1 |
|
5 |
Ф150 large plane test table |
1 |
15 |
weight A,B,C |
3 |
|
6 |
Ф 75 middle plane test table |
1 |
16 |
fuse 2A |
2 |
|
7 |
Ф 40 V-shaped test table |
1 |
17 |
horizontal regulating screw |
4 |
|
8 |
power cable |
1 |
18 |
spanner |
1 |
|
9 |
level |
1 |
19 |
screw driver |
1 |
|
10 |
anti-dust cover |
1 |
20 |
manual |
1 |
