SHR-1500D Digital Rockwell Hardness Tester
The SHR-1500D Digital Rockwell Hardness Tester is a precision testing device integrating a high-resolution color touch screen and a high-brightness display, featuring excellent stability, remarkable repeatability, and user-friendly operation. It can accurately display and store force values, dwell time, indentation depth and other information during the test. It supports full Rockwell scale measurement, automatically calculates the average, maximum and minimum hardness values, and can be connected to a computer via an RS232 interface. Its key specifications include: a test force range from 10kgf to 150kgf, hardness measurement covering all Rockwell scales such as HRA, HRB, HRC, and a maximum specimen height of 185mm (customizable to 400mm).
Product Details
Feature:
SHR-1500D Digital Rockwell hardness tester adopts the high resolution color touch screen with high brightness display. It has a good reliability, excellent operation and easy watching, so it is a high-tech product combining the mechanic and electric features. It can show and set the present scale, test force, test indenter, dwell time and hardness conversion; the main function is as follows: Selection of all the Rockwell scales; Conversion scales of different kinds of hardness; Display backlight adjustable with energy-saving mode; Real time data saving in the folder, the data can be arbitrary deleted and printed out; Test results can be saved in real time with automatic calculation of maximum, minimum and average value; The interface is visual and clear, very easy to operate; With RS232 interface for connecting to the computer.
Application:
Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc.
Standard: ISO 6508，ASTM E-18，JIS Z2245，GB/T 230.2
Detail pictures:

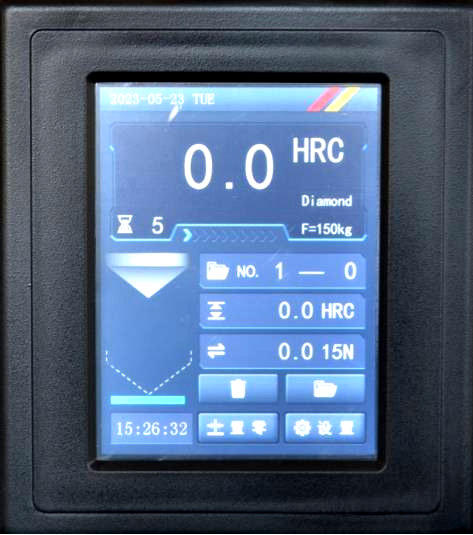

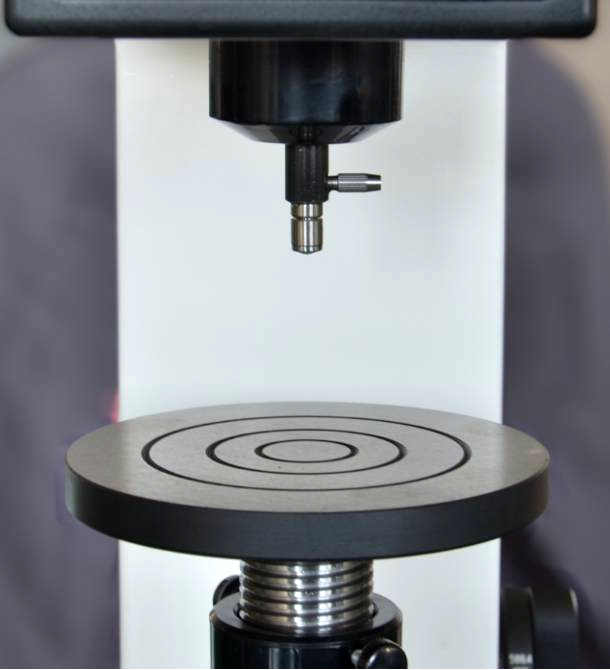

Operation interface Indenter and test table

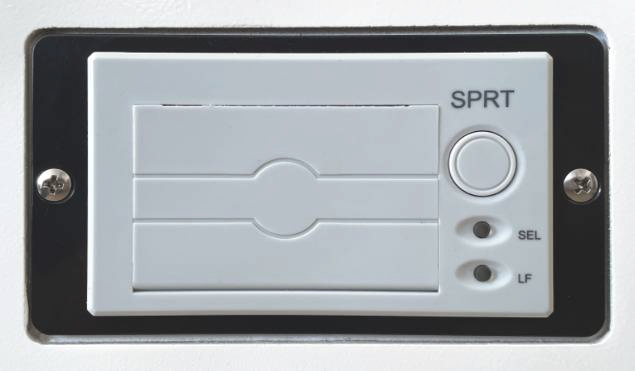

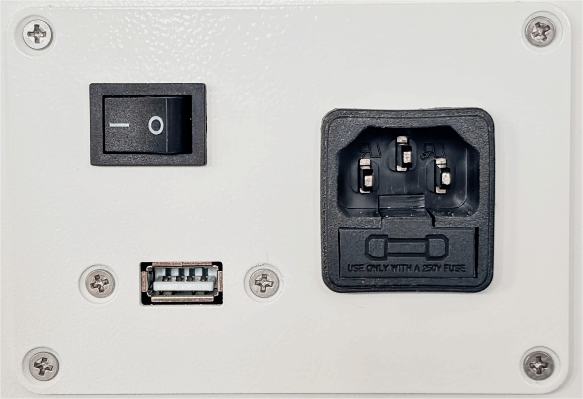

Built-in thermal printer USB port
Technical Specification：
|
Model |
SHR-1500D |
|
initial test force |
10kgf (98.07N) |
|
total test force |
60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N) |
|
indenter |
diamond rockwell indenter, ф1.588mmball indenter |
|
loading method |
automatic (loading/dwell/unloading) |
|
hardness reading |
5.6 inch LCD touch screen display, 6 folders, each 1000 sets data |
|
test scale |
HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV |
|
conversion scale |
HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW |
|
data output |
built-in printer，RS232 interface |
|
resolution |
0.1HR |
|
dwell time |
0~60s |
|
max. height of specimen |
185mm /customize 400mm |
|
throat |
165mm |
|
power supply |
AC220V，50Hz |
|
dimension(LWH) |
machine:520×215×700mm，packing: 650×370×950mm |
|
weight |
net weight: 78kg，gross weight: 100kg |
Standard accessories:
|
No. |
Name |
Qty |
No. |
Name |
Qty |
|
1 |
instrument main body |
1 |
11 |
diamond rockwell indenter |
1 |
|
2 |
ф1.588mmball indenter |
1 |
12 |
middle plane test table |
1 |
|
3 |
large plane test table |
1 |
13 |
V-shaped test table |
1 |
|
4 |
hardness block 60~70 HRC |
1 |
14 |
hardness block 20~30 HRC |
1 |
|
5 |
hardness block 80~100 HRB |
1 |
15 |
weight A,B,C |
3 |
|
6 |
power cable |
1 |
16 |
fuse 2A |
2 |
|
7 |
level |
1 |
17 |
horizontal regulating screw |
4 |
|
8 |
screw driver |
1 |
18 |
spanner |
1 |
|
9 |
anti-dust cover |
1 |
19 |
manual |
1 |
