SHB-3000X Digital Brinell Hardness Tester
The SHB-3000X Digital Brinell Hardness Tester is an integrated hardness testing device with a precision mechanical structure and closed-loop control system, which automatically completes the entire process of loading, dwell, and unloading, featuring high testing accuracy and easy operation. Supporting conversion between multiple hardness scales, it comes with a high-definition large screen and automatic calculation functions, and can be connected to a computer for data export; with a test force range of 61.29N (6.25kgf) ~ 29420N (3000kgf), a hardness measuring range of 3.8~658HBW, and a microscope resolution of 1μm, it is suitable for hardness testing of various materials such as cast iron, steel products, and nonferrous metals.
Product Details
Feature:
SHB-3000X Digital Brinell hardness tester is a unified product combining the precise mechanical structure and the load cell control system. The instrument adopts the motorized test force application without weights, and uses 0.5‰ accuracy compression sensor to feedback and the CPU control system to automatically compensate the test force lost during the test. The indentation can be directly measured through the digital measuring eyepiece, and it can intuitively show the test force, indentation length, dwell time, test number, date and time on the large screen. As long as press the eyepiece button after measuring the indentation length, it can automatically get the hardness value and shows on the screen. Test results can be saved for checking or be printed out by the built-in printer, and with RS232 interface for connecting to the computer. According to the client’s requirement, it can be equipped with video measuring device and CCD image automatic measuring system.
l The main body adopts cast iron structure which minimizes the deformation. The shell has undergone natural aging treatment for more than half a year, and its physical properties are stable.
l It adopts a 0.03 level force sensor to ensure precise and error free loading every time.
l After heat treatment, the hardness of the lifting screw reaches 35~40HRC, which is beneficial for the stability of the testing data at different heights during lifting.
l It supports the conversion of various hardness scales in real time and has the function of upper and lower limit settings.
l Real time saving of hardness test results, automatic calculation of maximum, minimum, mean, etc., with multiple folder selection, optional deletion and printing output.
l Built in thermal printer with fast printing speed, and equipped with RS232 interface for users to connect to PC output.
Standard: ISO 6506，ASTM E10-12，JIS Z2243，GB/T 231.2
Application:
Suitable for cast iron, steel products, nonferrous metals and soft alloys etc. Also suitable for some nonmetal materials such as rigid plastics and bakelite etc.
Detail Pictures:

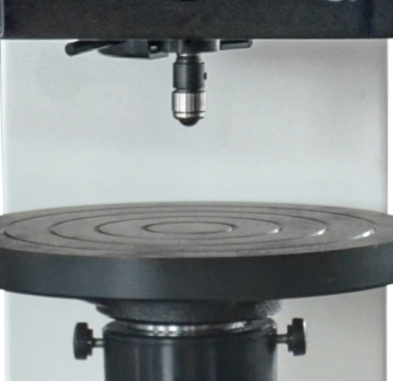

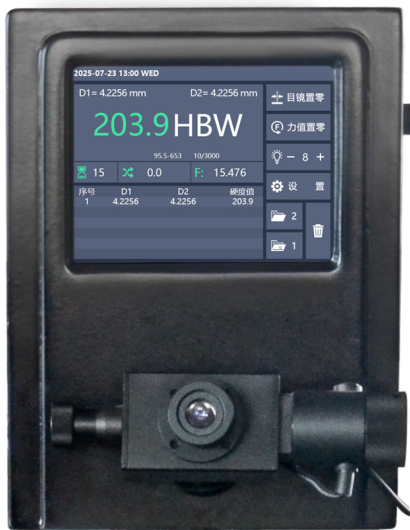

Operation interface Turret and test table

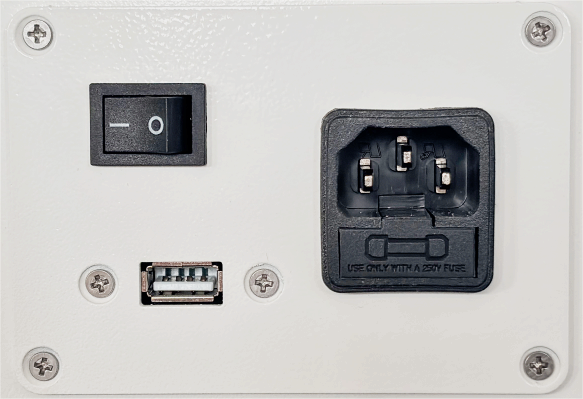

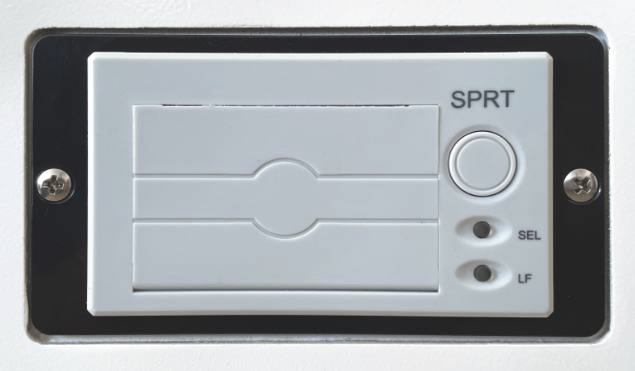

Built-in thermal printer USB port
Technical Specification:
|
Model |
SHB-3000X |
|
|
Test Force |
kgf |
62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf |
|
N |
612.9N, 980.7N, 1226N, 1839N, 2452N, 4903N, 7355N, 9807N, 14710N, 29420N |
|
|
Test Range |
3.18～653HBW |
|
|
Hardness Reading |
5.6 inch Touch Screen Display, 6 folders, each 1000 sets data |
|
|
Hardness Resolution |
0.1HBW |
|
|
Conversion Scale |
HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS HR15T, HR30T, HR45T, HS |
|
|
Data Output |
built-in printer, RS232 interface |
|
|
Microscope |
20× digital measuring eyepiece, 1x objective |
|
|
Effective Field of View |
6mm |
|
|
Resolution |
1μm |
|
|
Dwell Time |
0~60s |
|
|
Max. Height of Specimen |
215mm |
|
|
Throat |
135mm |
|
|
Dimension(LWH) |
machine size:550×240×800mm，packing size: 650×440×1060mm |
|
|
Weight |
Net Weight: 130kg，Gross Weight: 160kg |
|
|
Power Supply |
AC220V，50Hz |
|
Standard accessories:
|
NO. |
Name |
Qty |
NO. |
Name |
Qty |
|
1 |
Instrument Main Body |
1 |
7 |
20× Digital Measuring Eyepiece |
1 |
|
2 |
Ф2.5mm, Ф5mm, Ф10mm Ball Indenter |
3 |
8 |
Ф200 Large Plane Test Table |
1 |
|
3 |
Ф74 Small Plane Test Table |
1 |
9 |
Ф80 V-shaped Test Table |
1 |
|
4 |
Hardness Block 150~250 HBW 10/3000 |
1 |
10 |
Hardness Block 150~250 HBW 5/750 |
1 |
|
5 |
Fuse 2A |
2 |
11 |
Power Cable |
1 |
|
6 |
Anti-dust Cover |
1 |
12 |
Usage Instruction Manual |
1 |
