QM90 Instant Video Measuring Machine
The QM90 Instant Video Measuring Machine is a high-efficiency precision measuring device with dozens of times the measurement efficiency of traditional video measuring machines, supporting one-click measurement and simultaneous flash measurement of multiple workpieces. Equipped with a splicing imaging function, it can quickly detect various workpieces such as circuit boards, and with a point laser component, it can perform height measurements like step differences and hole depths. The lens supports auto-focusing and can record multi-layer data with one click, outputting inspection reports and product control data in real time. With core parameters including a measuring range of 82×55mm, repeatability of ≤±2μm, and a maximum splicing stroke of 255mm, it fully meets the efficient measurement needs of precision manufacturing.
Product Details
Features

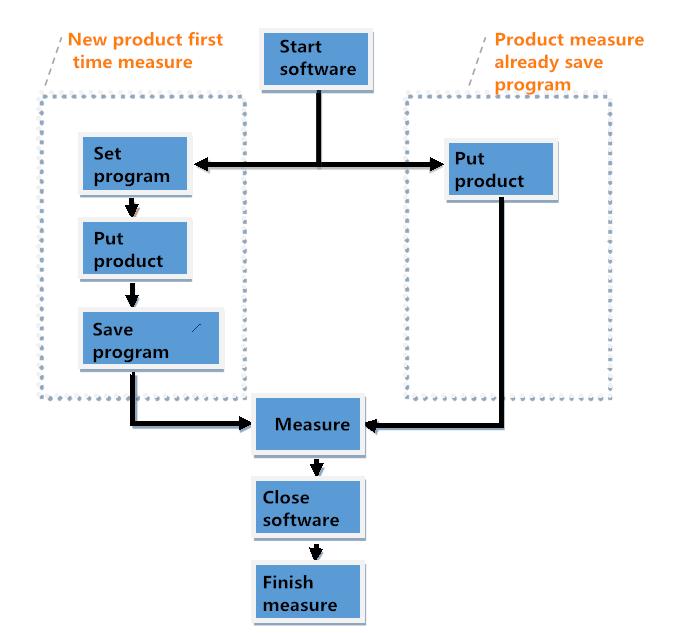

The measurement efficiency is dozens of times faster than the normal video measuring machine, one click to finish measure
Software comes with match function, workpiece can be placed arbitrarily, without build coordinate
Multiple workpieces can be moved at the same time for flash measurement, realizing high-precision and high-efficiency measurement

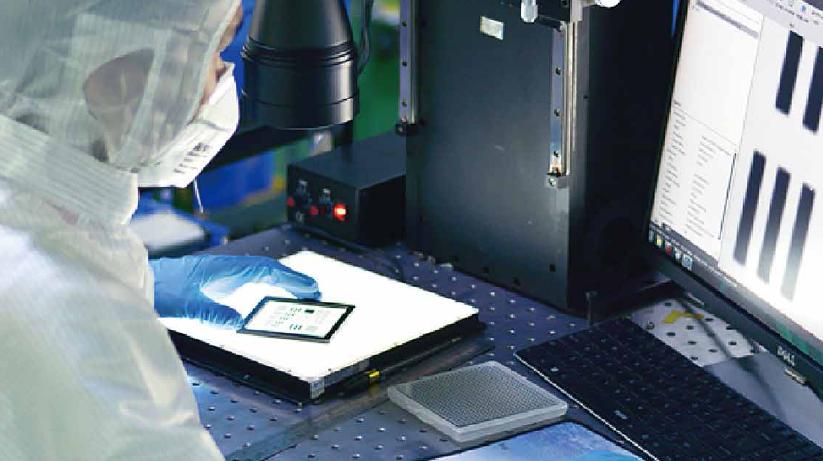

Software is equipped with splicing image function, which can realize the rapid scanning and measurement of a wide range of products, suitable for measuring in the circuit board, printed circuit board industry, or larger products
Software can be equipped with a point laser to complete product height measurement such as segment difference, hole depth, flatness.
The world's leading auto focus, which can realize the lens auto focus without manual adjustment, can record the position of multiple layers of the product in the program, and realize the one-click multi-layer measurement of multi-step products
Real-time data reports improve measurement efficiency and diversified report output. Feel free to output product control size.
Technical Specification
|
Model |
QM90 |
QM120 |
|
Measuring range (mm) |
82*55 |
120*80 |
|
Machine size(mm) |
300*450*760/850 |
400*550*900 |
|
Glass countertop size (mm) |
175*125 |
200*145 |
|
Net weight (kg) |
45 |
65 |
|
Working distance(mm) |
140/250 |
200 |
|
Field of view(mm) |
82 * 55 |
120*80 |
|
Accuracy FOV (μm) |
±3 |
±5 |
|
Repeatability FOV (μm) |
± 2 |
± 3 |
|
Table load (kg) |
5 |
5 |
|
Z move (mm) |
55 |
55 |
|
Optical magnification |
0.16 X |
0.11X |
|
Z type of drive |
DC integrated servo motor |
|
|
Z-axis movement |
control by software |
|
|
Camera |
20-Megapixel Monochrome Digital Camera (USB 3.0 Interface) |
|
|
Transmission light source |
Parallel Light Path LED Transmissive Illumination |
|
|
Surface reflective light source |
LED Annular Reflective Illumination System |
|
|
Surface coaxial light |
External Coaxial LED Reflective Illumination System |
|
|
Measurement software |
One-click Splicing Measurement Software |
|
|
Options |
White-light Confocal Spectroscopy |
|

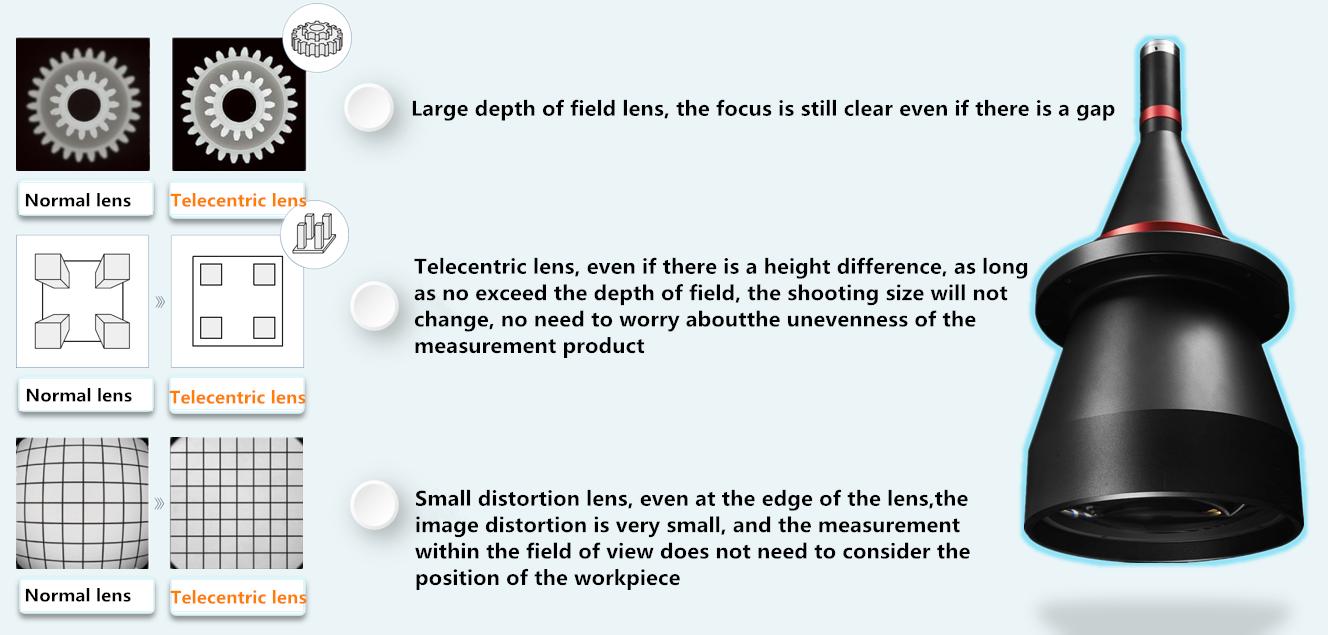

Optical lens system
|
View field |
82x55mm |
|
Maximum splicing stroke(mm) |
200*200/300*300 |
|
Support CCD size |
（1 Target surface） |
|
TV distortion |
<0.01% |
|
CCD connect interface |
C-mount |
|
Best image F/# |
6.5 |
|
Object telecentricity |
0.02 |
|
|
|
|
|
